The Open Systems Interconnection (OSI) model is a conceptual model created by the International Organization for Standardization that enables diverse communication systems to communicate using standard protocols. It breaks the communication process into seven layers, each of which plays a unique role in the way that it handles the communication between the systems.
Importance of the OSI Model
The OSI model is an attempt to provide some standardization for the field of data communications, a field that, until the 1970s, was so messed up that it was rare that two systems could connect to one another. The OSI model paved the way for standardized networking, enabling devices and software from multiple manufacturers to connect with one another. Its function in the network is indispensable.
The Seven Layers of the OSI Model
The OSI version includes seven layers, every serving a selected function inside the fact’s communique technique. From top to back, the layers are:
1. Application Layer (Layer 7)
This is the topmost layer and is closest to the user. It provides services that immediately guide user packages along with net browsers, email, and document switch applications. Commonplace protocols at this deposit consist of HTTP, FTP, SMTP, and DNS.
Characteristic: presents consumer interface and verbal exchange services.
Example: a web browser sending an HTTP request to load an internet site.
2. Presentation Layer (Layer 6)
The Presentation Layer acts as the translator for the community. It guarantees that statistics are in a readable format for the application Layer. This includes statistics encryption, compression, and translation of statistics formats.
function: data translation, encryption, and compression
Instance: Encrypting records the usage of SSL/TLS for comfy communique
3. Session Layer (Layer 5)
This accretion is responsible for setting up, managing, and terminating classes between applications. Consultation refers to a non-stop alternate of records between two gadgets.
Feature: Manages classes and controls conversation among devices.
Instance: keeping a session at the same time as a person is logged into a faraway server.
4. Transport Layer (Layer 4)
The delivery Layer ensures dependable data transfer among devices. It provides mechanisms for blunder detection and correction, go-with-the-flow manipulation, and segmentation of statistics. The most common protocols right here are TCP (Transmission Management Protocol) and UDP (person Datagram Protocol).
Feature: ensures dependable or best-effort shipping of data.
Example: TCP makes sure all packets of a file arrive in the ideal order.
5. Network Layer (Layer 3)
This sediment determines how data is routed among gadgets on different networks. It offers logical addressing (like IP addresses) and course dedication. The important protocol here is the net protocol (IP).
Characteristic: Logical addressing and routing.
Example: A router forwarding packets primarily based on IP addresses.
6. Data Link Layer (Layer 2)
The data hyperlink layer is liable for node-to-node facts switch and mistake detection for frames. It manages bodily addressing the usage of MAC addresses and guarantees that facts are formatted efficaciously for the Physical Layer. Protocols like Ethernet and PPP operate here.
Function: Framing, MAC addressing, and mistake checking.
Instance: A community card is the use of Ethernet to send information to another device on the equal LAN.
7. Physical Layer (Layer 1)
The lowest layer, the physical layer, offers the real transmission of uncooked binary information over a physical medium, including cables, switches, or radio waves. It defines electrical, optical, and mechanical traits.
Function: Transmits bits over the bodily medium.
Example: Sending alerts through a fiber-optic cable.
Advantages of the OSI model
Standardization: affords a usual language for network verbal exchange
Modularity: each layer operates independently, allowing easier troubleshooting and protocol improvement
Interoperability: Encourages supplier-neutral conversation.
Troubleshooting: enables community specialists to isolate troubles at specific layers.
OSI Model vs. TCP/IP Model
Even as the OSI version is a theoretical model, the TCP/IP version is a more practical framework used in actual international networking. The TCP/IP model has four layers, which map to numerous OSI layers. Despite this, the OSI version remains an invaluable tool for expertise and coaching community verbal exchange.
Alright, let’s unpack the OSI layers in a uniquely creative way that’ll make everything click instantly.

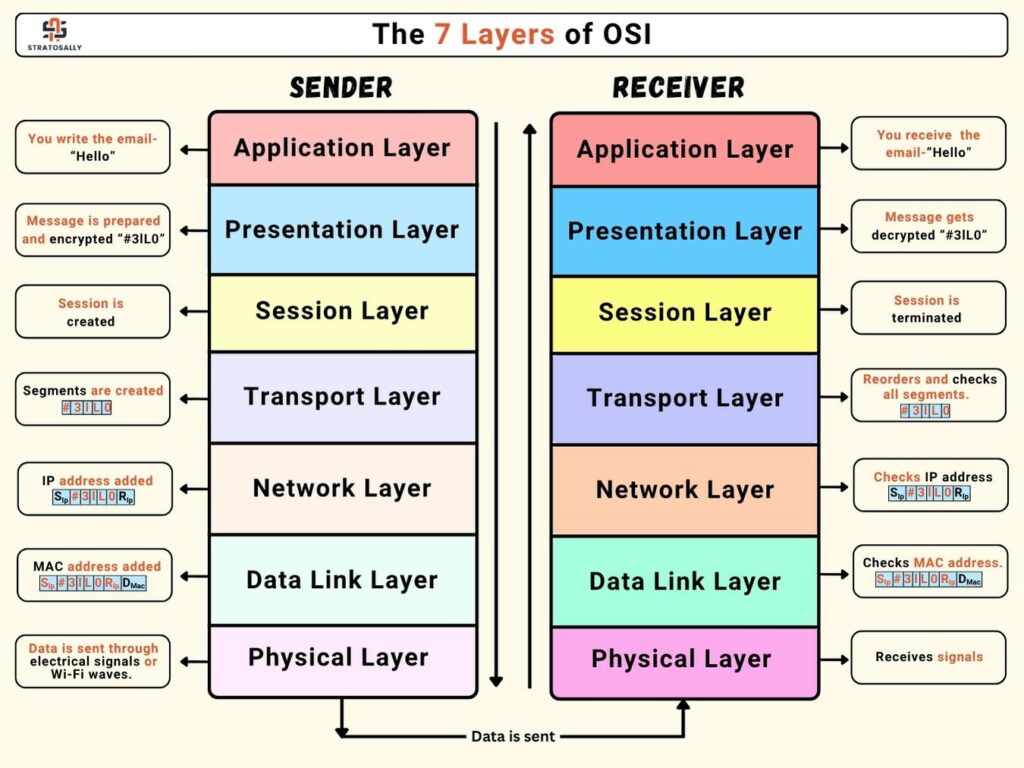

Sending a Gmail Email: OSI Layer Explained
Imagine you’re Alice and want to send a message to your friend using Gmail. Let’s see how the data flows through all 7 OSI layers on your side, and then how the receiver’s system reverses it to read the message.
Sender Side (You are writing and sending the email)
- Application Layer (Layer 7) – You write the email
- You open Gmail and type: “Hey, let’s meet at 5 PM.”
- This is where the message is created by the app.
- Presentation Layer (Layer 6) – Message is prepared and encrypted
- Your message is converted into a computer-friendly format (binary).
- Then it’s encrypted to keep it secure.
- Session Layer (Layer 5) – Connection is started
- A session (communication link) is opened between your device and your friend’s device.
- Like starting a phone call before talking.
- Transport Layer (Layer 4) – Message is broken into pieces
- Your email is split into smaller parts called segments.
- Each piece is numbered to keep them in order.
- TCP ensures all parts are delivered correctly.
- Network Layer (Layer 3) – Add IP addresses
- Your IP address (sender) and your friend’s IP address (receiver) are added.
- Now it’s called a packet.
- Routers use this to find the best path.
- Data Link Layer (Layer 2) – Add MAC address
- Your device adds its MAC address and the next device’s MAC.
- The packet becomes a frame, ready to move in the local network.
- Physical Layer (Layer 1) – Data is sent
- All data is turned into electrical signals or Wi-Fi waves.
- It travels through cables or air to reach your friend.
Receiver Side (Your friend gets the email)
- Physical Layer receives signals.
- Data Link Layer checks MAC address.
- Network Layer checks IP address.
- Transport Layer reorders and checks all segments.
- Session Layer keeps the connection alive.
- Presentation Layer decrypts the message.
- Application Layer shows the email in Gmail just as you typed it.
And that’s how your simple Gmail message travels across seven layers, gets safely delivered to your friend, and is rebuilt step-by-step — just like you wrote it. Behind every “Send” button lies a magical journey through the OSI model!
Conclusion
The OSI version provides a dependent technique for understanding how information is used in a community, from the consumer’s utility to the bodily transmission medium. Every layer has its own personal duties, making the version a powerful tool for network design, improvement, and troubleshooting. Even though current networking is based on the TCP/IP model, the OSI version remains a foundational idea in laptop networking training and exercise.
